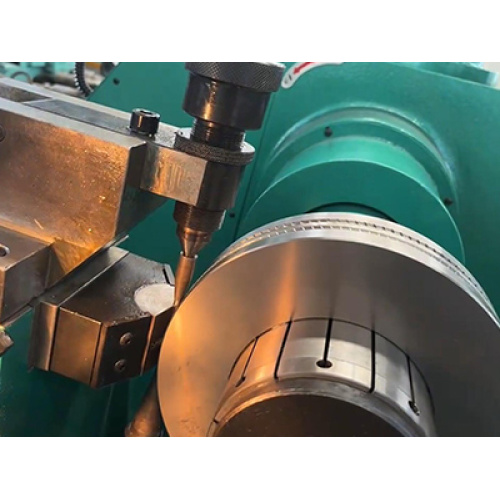

How does a CNC crescent groove milling machine turn raw materials into precise parts?

The core of how a Cnc Crescent Groove Milling Machine processes rolled-steel raw materials into precise parts lies in precisely controlling multi-axis linkage through the CNC system, achieving synchronous actions of "rotation by indexing" and "milling feed", and completing all processes from rough milling to fine marking in one setup. The entire process integrates precise coordination among mechanical, control, and process aspects.

The processing procedure of the CNC Crescent Groove Milling Machine can be broken down into the following key steps:

The workpiece rolls to be machined (whether made of high-speed steel, hard alloy, or tungsten carbide) are firmly installed on the worktable or headstock of the machine tool by a dedicated fixture. This step requires extremely high positioning accuracy to provide a unified benchmark for all subsequent processing. For extremely hard materials, the rigidity of the fixture is also crucial to prevent vibration during the machining process from affecting accuracy.

This is where the "brain" of the machine operates. Based on the requirements of the final part drawing, engineers will write the processing program. The program will precisely set:

Rotary angle and speed of the rolls: Control the main spindle (C-axis) of the workpiece to achieve precise arbitrary or unequal division indexing, allowing the rolls to stop accurately or rotate at a constant speed at the position to be processed.

The movement trajectory of the cutting tool: The main spindle of the milling cutter is controlled (through the linkage of X, Y, and Z axes) to perform complex spatial movements. For example, to machine a crescent groove with an arbitrary helical angle, the milling cutter needs to perform lateral feed (along the X-axis) while the roller (along the C-axis) rotates proportionally, forming a helical movement trajectory.

This is the key step in the process. Depending on the shape and hardness of the material, the machine tool will adopt different strategies:

Efficient fly-cutting: For the processing of large quantities of crescent grooves, the machine tool often adopts a "fly-cutting" structure. This is a single-tooth tool that can perform gradually deeper milling through high-speed rotation. It has extremely high efficiency, and the pure cutting time for a crescent groove may only take about 12 minutes.

Precision dividing tool processing: For extremely hard high-speed steel rolls or tungsten carbide roll rings, in order to prevent excessive wear of the cutting tools, a multi-layer and multiple feed-in process is adopted.

This is a major feature of modern CNC crescent groove milling machines. After all the crescent grooves have been milled, the machine does not need to be replaced. By flipping or replacing a milling head accessory, it can automatically perform engraving on the same machine.

Working principle: The milling cutter structure for milling the crescent groove is "switched" to a small milling head structure. Essentially, this represents another processing mode. The numerical control program will control this milling head to precisely "milling" at the designated position of the roller (such as the edge of the roller ring), engraving the product specifications, grades, trademarks, etc. This process is usually very efficient, and the engraving time is approximately 5 minutes.

During the processing and after completion, some advanced machines or processes will combine measurement methods for monitoring. For example, by adjusting the coolant in real time to remove chips and cool down, the dimensions can be stabilized. Based on the measurement results, the operators can make minor adjustments to the tool compensation or subsequent processing procedures to ensure that all dimensions, shapes and positional accuracies meet the strict requirements of the design drawings.
