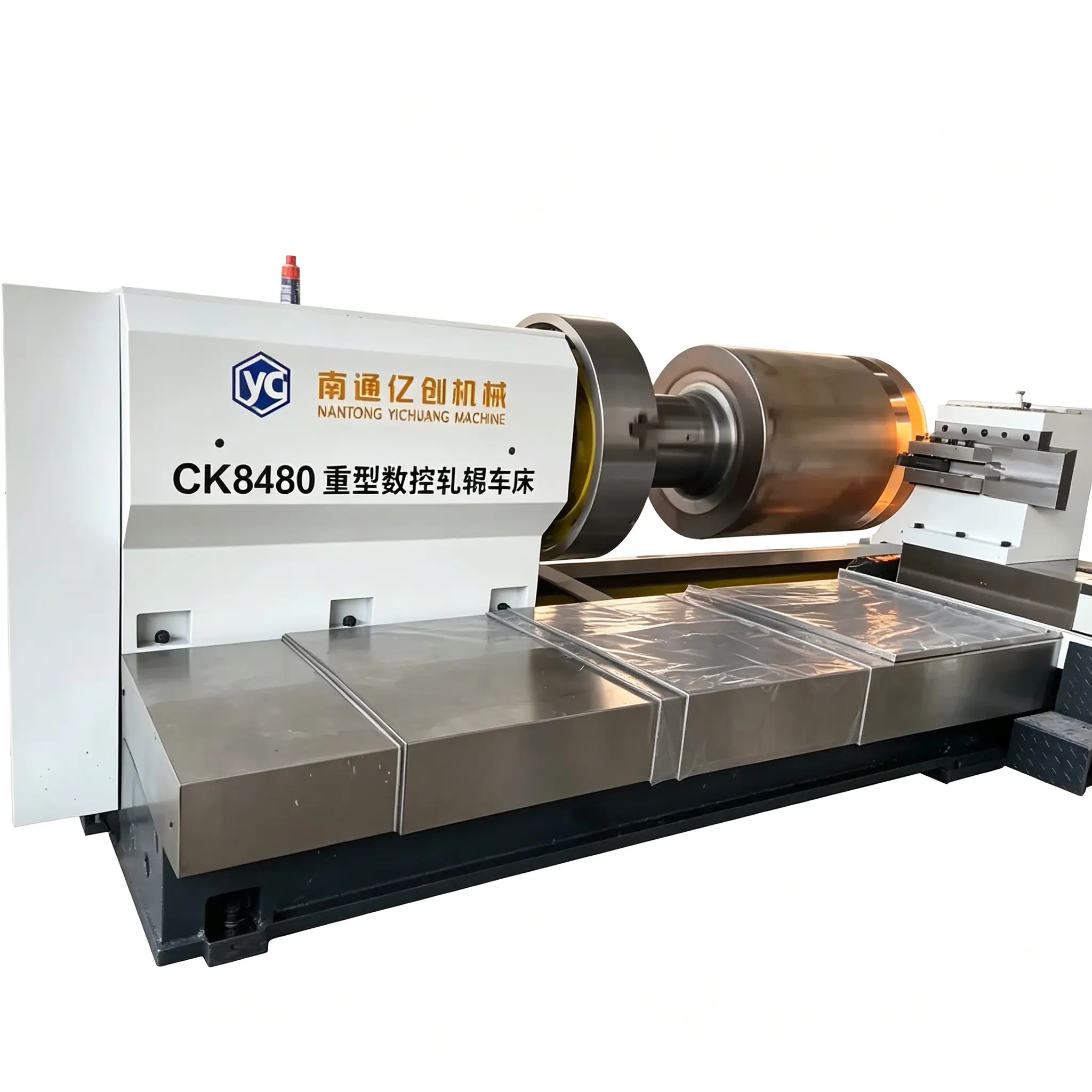

CK8480 Heavy Duty CNC Lathe for Rollers

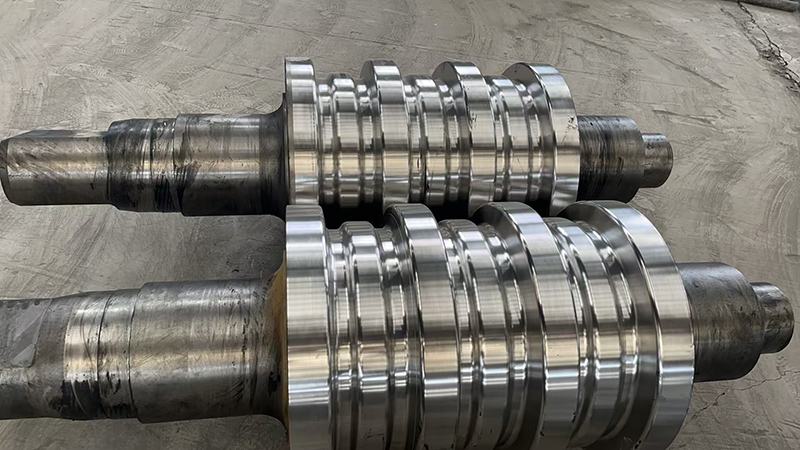

This CK8480 CNC heavy duty Roll Lathe belongs to our core Roller Lathe product line independently developed by Nantong Yichuang Machinery Equipment Manufacturing Co., Ltd., adhering to the business tenet of "manage sincerely and keep improving". This heavy roll turning machine is specially applicable to semi-finishing and finishing turning of cast iron, carbon steel and various non-ferrous metal rollers widely used in metallurgy, papermaking, printing and rubber industries; it can complete integrated turning, repairing and forming processing for roller outer circle, end face, complex groove profiles and special curved surfaces by matching high-speed steel, carbide alloy and multi-type cutting tools. Equipped with advanced integrated mechanical structure and mature industrial manufacturing technology, the CK8480 roll lathe features thickened integral cast iron bed with long-term aging stress relief treatment, ultra-high static, dynamic and thermal stiffness to support continuous heavy-load cutting without deformation, matched with complete full-sealed safety protection cover and reliable interlock safety devices. As a star heavy roller processing equipment, it can form a complete roller manufacturing production line when combined with supporting Thread Milling Machine and Vertical Machining Center, and our factory stores full-series spot CNC Machine Spare Parts all year round to support fast after-sales maintenance without long production shutdown waiting time.



● The whole machine adopts advanced, stable and reliable integral cast bed structure, with standardized mature manufacturing technology, neat and compact appearance layout, and full set of interlocking safety protection devices. Optimized raw material selection and precise machining craft ensure long-lasting stable machining accuracy, suitable for 24-hour non-stop heavy-load roller processing; the machine owns excellent static stiffness, dynamic stiffness and thermal stiffness, the CNC operation control runs stably without jitter, the man-machine operation interface is simple, smooth and intuitive, and daily disassembly, inspection and maintenance steps are simple and labor-saving.

● The bed carriage guide rail adopts 3+1 rectangular positioning hard guide rail, the rail surface is processed by high-frequency quenching to improve wear resistance; longitudinal Z-axis and transverse X-axis feeding are driven by high-precision ball screw pairs, the tool rest sliding rail is high-rigidity solid rectangular guide rail. The front and rear main shaft supporting parts adopt high-precision double-row roller bearings, which provide strong bearing rigidity, ultra-high rotation concentricity accuracy, and convenient clearance adjustment and regular maintenance.

● Standard equipped with SIEMENS 828D industrial dedicated CNC system, the main spindle drive adopts high-power AC servo motor, Z-axis longitudinal feed and X-axis transverse feed all adopt precision ball screw transmission, tool holder longitudinal and transverse movement are independently driven by AC servo motors, realizing constant linear speed cutting, automatic size detection and error compensation functions for all roller processing procedures.

● Maximum load bearing capacity reaches 80 tons, matched with full hydraulic self-centering tailstock, which can firmly clamp ultra-heavy oversized rollers without slipping or displacement during high-speed turning; built-in large-flow automatic chip removal device, closed protective shell effectively blocks cutting fluid splashing and metal debris scattering, greatly reducing equipment abrasion and workshop environmental pollution.

● Full customized service is supported, including adjustable swing diameter, effective processing length, CNC system language, auxiliary milling attachments and hydraulic clamping specifications; all finished CK8480 lathes pass strict hydraulic pressure test, no-load running test and heavy load cutting inspection before delivery. Our warehouse reserves full-range spot CNC Machine Spare Parts including spindle assemblies, servo motors, system modules and tool holders, which can be delivered within 48 hours after receiving customer orders.

We own high-quality management teams and senior technical engineers, and organize monthly technical exchange training to continuously optimize the machining precision and overall stability of CK8480 Cnc Roll Lathe. We sincerely welcome global customers to visit our factory workshop for field inspection and technical communication, we can provide full-set roller processing machine tools and complete supporting CNC Machine Spare Parts integrated solutions, and look forward to establishing long-term win-win cooperative relations with new and old purchasers at home and abroad.
