Product Attributes

Model No.: YCDS-001D

Brand: YICHUANG

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Machinable Roller Ring Outer Diameter: φ50-φ400mm

Machinable Roller Ring Maximum Hole Type: φ60mm

Maximum Workpiece Weight: 150Kg

Machine Tool Dimensions: 2240x1720x1810mm

Total Machine Tool Weight: 5000Kg

Supply Ability & Additional Information

HS Code: 84602311

Payment Type: L/C,T/T

Incoterm: FOB,CIF

Packaging & Delivery

Selling Units:

Set/Sets

Product Overview:

The Ultra-precision Carbide Roll Grinder is a high-end Roll Ring Grinder purpose-engineered for the most demanding tungsten carbide and cemented carbide roll ring finishing applications, where micron-level tolerances and mirror-like surface finishes are non-negotiable. As a specialized Cnc Grinding Machine, this system combines ultra-rigid machine construction with nanometer-resolution servo drives and hydrostatic spindle technology to achieve grinding accuracies of ±0.0015mm and surface roughness below Ra 0.2μm—performance metrics that traditionally required expensive imported European or Japanese machines. Unlike conventional grinders that struggle with carbide's extreme hardness (HRA 86-92) and abrasive wear characteristics, this Cnc Roll Ring Grinder features a proprietary carbide-specific grinding wheel formulation and adaptive feed control algorithm that automatically adjusts infeed rates based on real-time spindle load monitoring, preventing thermal damage and edge chipping while maximizing wheel life and material removal rates. The machine's closed-loop temperature compensation system continuously monitors ambient and machine thermal conditions, applying real-time correction to axis positions—ensuring that your Roll Ring Grinder delivers consistent sub-micron accuracy across full production shifts, regardless of workshop temperature fluctuations. With a maximum workpiece diameter of 500mm, grinding length of 600mm, and 800KG capacity, this Cnc Roll Ring Lathe-grade precision platform handles everything from small indexable carbide inserts to large carbide roller rings used in wire rod and bar mills. Fully automated with Siemens 840D CNC control, integrated in-process gauging, automatic wheel balancing and dressing cycles, this Ultra-precision Carbide Roll Grinder delivers laboratory-grade accuracy at production-line productivity—giving carbide ring manufacturers the competitive edge to meet increasingly stringent customer specifications while reducing scrap rates and rework to near zero.

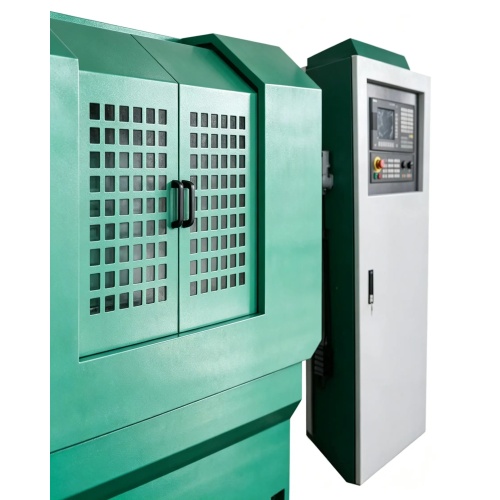

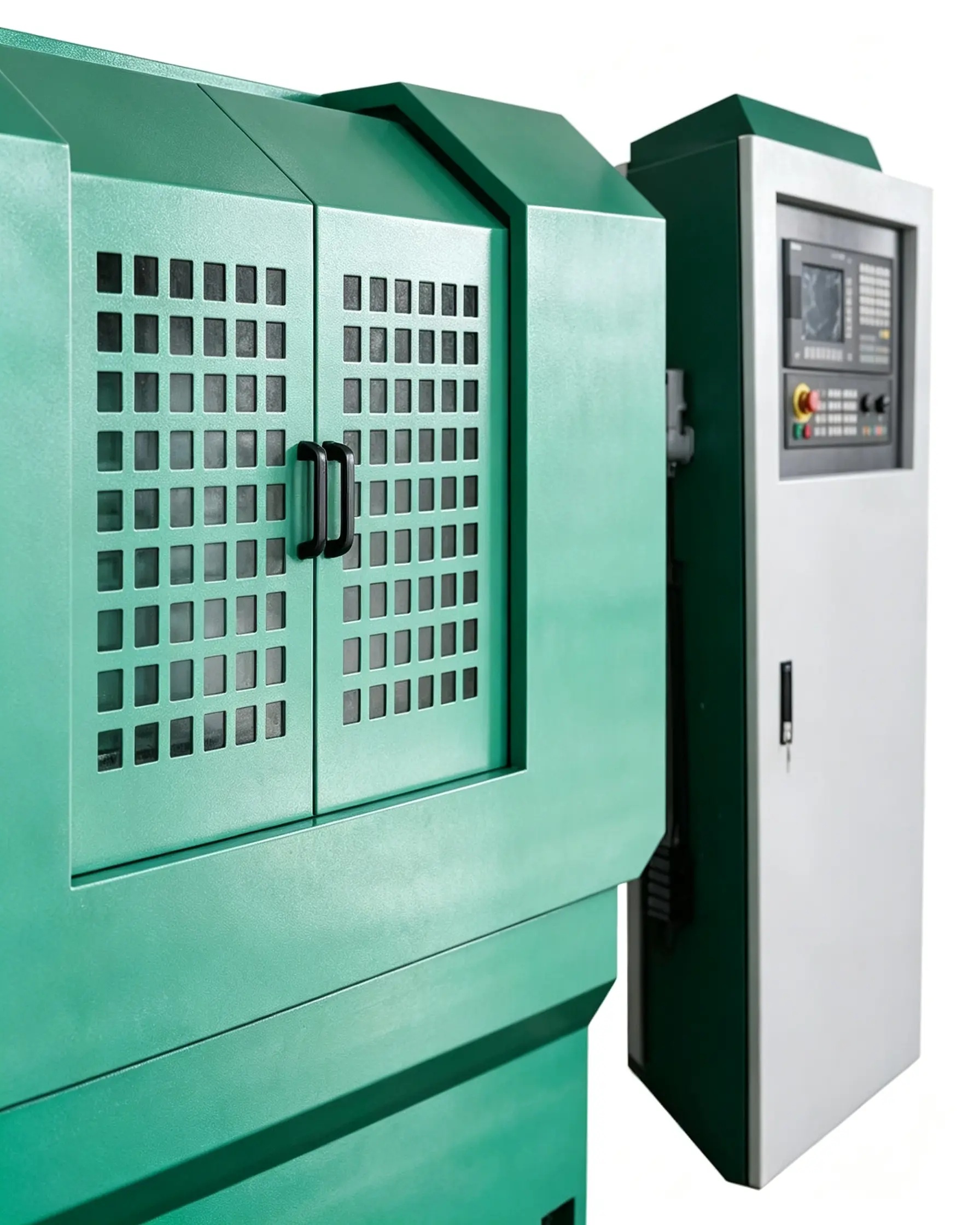

YCDS-001D CNC Carbide Roll Forming Grinding Machine

Main features:

1. Ultra-Precision Grinding – Sub-Micron Accuracy for Carbide

2. Carbide-Specific Grinding Technology

3. Fully Automated Production – From Loading to Finished Ring

4. Ultra-Rigid Construction – The Foundation of Ultra-Precision

5. Versatility Beyond Carbide

Technical parameter:

Machinable roller ring outer diameter	Φ50-Φ400mm
Maximum machinable roller ring hole type	Φ60mm
Head frame center height	220mm
Worktable drive motor	11 N•m Siemens AC servo motor
Maximum worktable movement	250mm
Workpiece grinding length	200mm
Maximum workpiece weight	150Kg
CNC equivalent of worktable movement	0.001mm
Grinding head feed motor	11 N•m Siemens AC servo motor
Maximum grinding head movement	200mm
Grinding head movement CNC equivalent	0.01mm
Grinding head main motor power	18Kw
Grinding wheel diameter	Ø200～Ø300×Ø127mm Recommended Ø250×Ø127mm
Grinding wheel speed	2000 rpm
Head frame motor	11 N•m Siemens AC servo motor
Head frame spindle speed	0-60 rpm, stepless speed regulation
Large housing exhaust port diameter	Φ150mm
Total machine power	30KVA
Processing type	Mechanical grinding
Working fluid	RN-M03
Machine size (length×width×height)	2240×1720×1810mm
Machine weight	5000KG

This Ultra-precision Carbide Roll Grinder is the preferred choice for:

Tungsten carbide roll ring manufacturers requiring ultra-tight tolerances
Wire rod and bar mill roll workshops processing carbide rings for high-speed rolling
Carbide insert and indexable tool production for precision finishing
Aerospace and automotive carbide component grinding
Research institutions and metrology labs for ultra-precision sample preparation
