Product Attributes

Model No.: YCDS-001D

Brand: YICHUANG

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Machinable Roller Ring Outer Diameter: φ50-φ400mm

Machinable Roller Ring Maximum Hole Type: φ60mm

Maximum Workpiece Weight: 150Kg

Machine Tool Dimensions: 2240x1720x1810mm, 5000Kg

Supply Ability & Additional Information

HS Code: 84602311

Payment Type: L/C,T/T

Incoterm: FOB,CIF

Packaging & Delivery

Selling Units:

Set/Sets



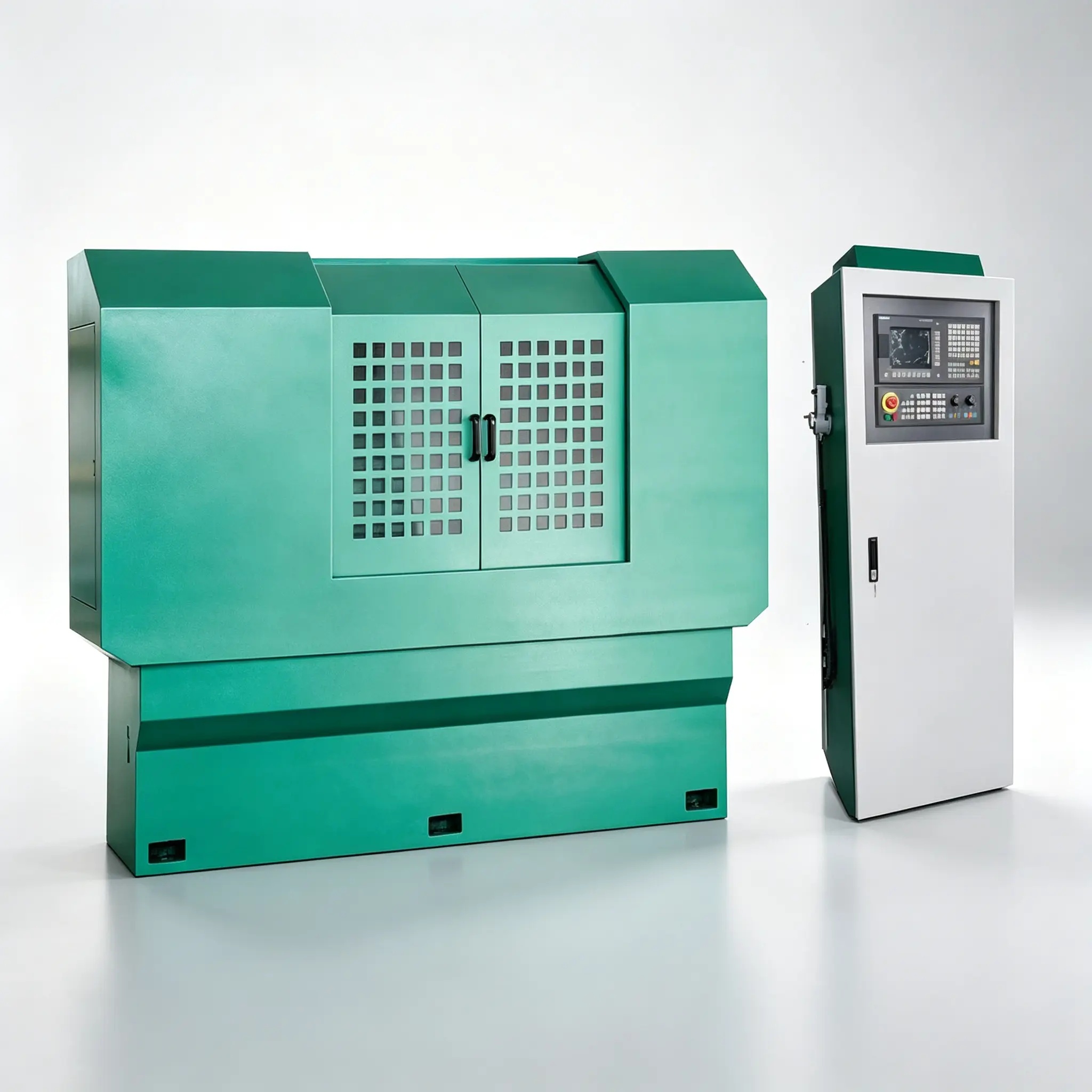

CNC Roll ring grinder



Product Overview:

The Multifunctional Carbide Roll Grinder is a versatile Roll Ring Grinder engineered for workshops that process a wide variety of carbide roller ring geometries, sizes, and material grades—without compromising on precision, productivity, or ease of use. Unlike single-purpose grinders that lock you into narrow processing capabilities, this Cnc Grinding Machine is designed with modular grinding heads, quick-change wheel adapters, and multi-axis CNC control to handle external cylindrical grinding, internal bore grinding, face grinding, tapered surfaces, and complex contour profiles—all on a single machine platform. This Cnc Roll Ring Grinder delivers the flexibility of a Cnc Roll Ring Lathe combined with the precision of a dedicated grinder, making it an ideal cost-effective solution for job shops, maintenance workshops, and small-to-medium rolling mills that need to process multiple roll ring types with frequent changeovers. Powered by an intuitive Siemens CNC system with conversational programming, the Multifunctional Carbide Roll Grinder allows operators to switch between grinding tasks in under 10 minutes—reducing setup downtime by 70% compared to conventional specialized grinders. Whether you are grinding cemented carbide rings for rebar mills, finishing tungsten carbide guide rolls for seamless tube production, or refurbishing worn carbide rings to original specifications, this multi-purpose Roll Ring Grinder offers an unbeatable combination of versatility, precision grinding capability, and rapid return on investment—typically under 18 months based on reduced equipment duplication and labor savings.

Main features:

1. Multi-Configuration Grinding Heads – One Machine, Unlimited Possibilities

2. Universal Versatility – Process Everything from Small Rings to Large Rolls

3. Rapid Changeover – Minimize Downtime, Maximize Productivity

4. Smart CNC Control – Simple Enough for Job Shops, Powerful Enough for Production

5. Stable & Vibration-Free Performance – Guaranteed Grinding Quality

6. Cost-Effective Carbide Processing

Technical parameter:

Machinable roller ring outer diameter	Φ50-Φ400mm
Maximum machinable roller ring hole type	Φ60mm
Head frame center height	220mm
Worktable drive motor	11 N•m Siemens AC servo motor
Maximum worktable movement	250mm
Workpiece grinding length	200mm
Maximum workpiece weight	150Kg
CNC equivalent of worktable movement	0.001mm
Grinding head feed motor	11 N•m Siemens AC servo motor
Maximum grinding head movement	200mm
Grinding head movement CNC equivalent	0.01mm
Grinding head main motor power	18Kw
Grinding wheel diameter	Ø200～Ø300×Ø127mm Recommended Ø250×Ø127mm
Grinding wheel speed	2000 rpm
Head frame motor	11 N•m Siemens AC servo motor
Head frame spindle speed	0-60 rpm, stepless speed regulation
Large housing exhaust port diameter	Φ150mm
Total machine power	30KVA
Processing type	Mechanical grinding
Working fluid	RN-M03
Machine size (length×width×height)	2240×1720×1810mm
Machine weight	5000KG

This Multifunctional Carbide Roll Grinder serves:

Small-to-medium rolling mills processing multiple roll ring types
Carbide ring job shops with frequent customer-specified variations
Roll refurbishment and maintenance workshops
R&D and prototyping facilities testing new carbide formulations
Contract grinding service providers needing maximum equipment flexibility
