Product Attributes

Model No.: JX-GHK-6040

Brand: YICHUANG

Supply Ability & Additional Information

Payment Type: L/C,T/T

Incoterm: FOB,CIF

Packaging & Delivery

Selling Units:

Set/Sets



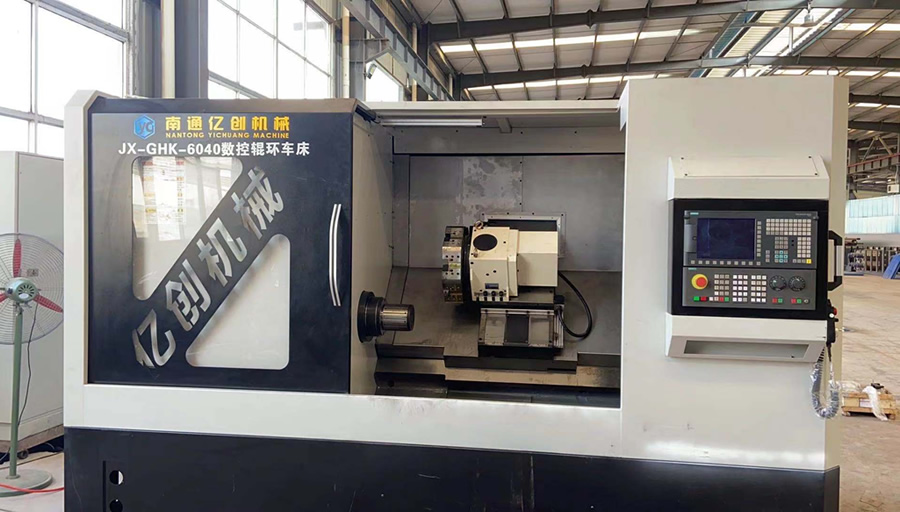

JX-GHK60 Roll ring grinder machine



The Stable Anti-Vibration Universal Roll Ring Grinder represents a new generation of precision grinding technology, purpose-built for finishing chilled cast iron, high-speed steel, and tungsten carbide roller rings with unparalleled surface quality and dimensional accuracy. Unlike traditional Roll Ring Grinder equipment that suffers from vibration-induced errors and thermal distortion during prolonged operation, this machine integrates a shockproof bed structure, dampened spindle mounting system, and precision-balanced grinding wheel assembly to effectively absorb and dissipate cutting forces—ensuring stable, chatter-free grinding even under heavy stock removal conditions. This Cnc Grinding Machine is equipped with an advanced Siemens numerical control system that supports fully automated grinding cycles, including automatic wheel dressing, in-process gauging, and adaptive feed control, significantly reducing operator intervention and eliminating human errors. More than just a conventional grinder, this Cnc Roll Ring Grinder functions as a versatile Machining Center capable of handling internal (ID) and external (OD) cylindrical grinding, face grinding, and tapered surface finishing—all in a single setup, making it an ideal Cnc Roll Ring Lathe alternative for workshops that require both turning and grinding flexibility without investing in multiple machines. With a maximum swing diameter of 500mm, grinding length of 600mm, and workpiece capacity of 800KG, this universal grinder accommodates a wide range of ring sizes, from small precision rings to large heavy-duty rolls. Whether you are a steel mill seeking consistent roll finishing quality, a ring manufacturer requiring fast changeovers between different product sizes, or a workshop upgrading from manual to automated grinding, this Stable Anti-Vibration Universal Roll Ring Grinder delivers the perfect balance of rigidity, accuracy, and operational simplicity—reducing cycle times by up to 40% while maintaining surface roughness below Ra 0.4μm.

This Stable Anti-Vibration Universal Roll Ring Grinder is widely deployed in:

Rebar and wire rod rolling mills – for finishing of work rolls and backup rolls
Seamless tube and pipe mills – for mandrel and guide roll grinding
Ring forging and bearing rings – for precision ring finishing
Tungsten carbide ring processing – for high-hardness material grinding
Steel research institutes – for prototype and small-batch roll development
Roll remanufacturing workshops – for re-grinding worn rolls to original specs

Technical parameter of high efficiency CNC Roller Ring Grinding Machine:

Maximum rotation of bed	Φ500mm
Maximum rotation diameter of saddle	Φ400mm
Maximum cutting diameter	Φ400mm
Maximum cutting length	400mm
X-stroke	260mm
Z-stroke	450mm
X to fast moving speed	10000mm/min
Z Fast moving speed	10000mm/min
X direction minimum feed	0.001mm
Z-direction minimum feed	0.001mm
Spindle specification	A2-11
Maximum spindle speed	1500rpm
Spindle aperture	Φ100mm
CNC electric tool holder	4-station
Tool mounting dimension	40x40mm
Spindle motor power	22Kw
X-axis servo motor power	2.29Kw
Z Motor power	2.29Kw
Cooling tank capacity	220L
Cooling pump motor power	650w
Chip removal machine power	400w
Machine outline dimension	380019501600mm
Machine weight	4000Kg
