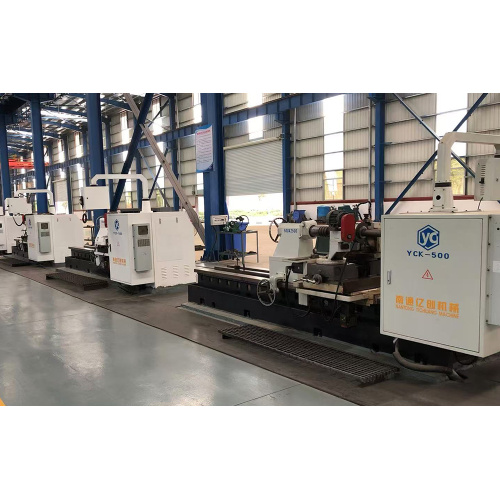

CNC Roll Notching Lettering Milling Machine

YCK-500 CNC Roll Notching & Lettering Milling Machine is a multifunctional Cnc Roll Milling Machine independently developed for steel roller machining. As a high-rigidity Roll Milling Machine, it breaks the limitation of single processing equipment on the market. Compared with ordinary Roller Milling Machine and traditional Roll Mill Machine, this unit adopts three-guideway rectangular cross-section bed structure, delivering excellent structural stability during long-term heavy-load cutting. The machine supports one-time clamping to finish crescent groove milling, slot jumping and workpiece lettering. It features high automation, superior machining accuracy and remarkable cutting efficiency. Safe and reliable continuous operation lowers repeated clamping errors and labor costs, making it preferred processing machinery for rebar roller manufacturers and rolling mill workshops. This integrated Roll Milling Machine perfectly meets diversified processing demands of roller workpieces, effectively improving the overall production capacity of roller machining workshops.







Model	YCK-500
Maximum diameter of workpiece	Φ500mm
Maximum length of workpiece	2500mm
Applied for thread specification	Φ6~Φ50
Rotation speed of workpiece (Servo)	0~32rpm (Servo)
The way of cutting	Fly-cutting
Rotate speed of machine tool spindle	30~3000rpm2.2kw
Minimum feed amount	0.001mm (°)(Servo)
Bore-hole of headstock spindle	MT5#
Chuck of headstock spindle	Φ400mm
Rotational speed of spindle	0~400 rpm
Overall dimensions of machine tool	4500x1700x2100mm
Cooling pump motor	90w(380V)
Control the working power of the system	DC24V、50HZ
CNC configuration	Siemens 808D numerical-controlled system
