In the field of roller ring manufacturing, the roller ring, as the core consumable component of high-speed wire rod rolling machines, its processing accuracy and surface quality directly affect the dimensional accuracy of the rolled material and the operating rate of the rolling line. For a long time, the precision processing of roller rings has relied on grinding machines. However, such equipment requires a large investment, occupies a large area, and has high maintenance costs. In recent years, the numerical control roller ring special machine, with the core concept of "replacing grinding with turning", has gradually entered the industry's attention, providing a more cost-effective alternative solution for roller ring processing. This article, based on the equipment structure and process characteristics, summarizes its application scenarios and selection key points.
I. Equipment Positioning: Special Machine for "Replacing Grinding with Turning"
The numerical control

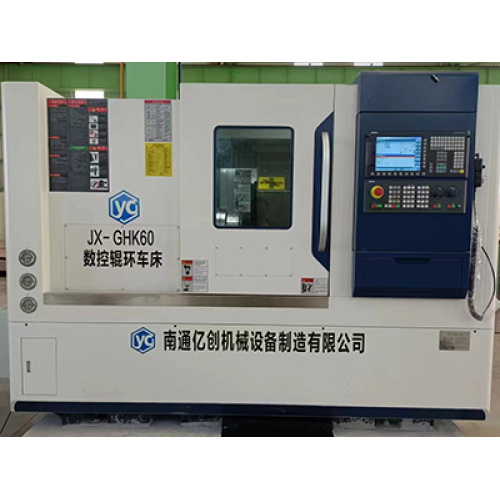

Roller Ring Grinding Machine (actually a numerical control roller ring special machine) consists of a bed, a main shaft box, a tool holder, a main motor base, a reduction mechanism, an automatic chip removal and guide rail protective cover, etc. It is mainly targeted at the precision processing requirements of roller rings with a maximum workpiece diameter of 500mm, a maximum workpiece length of 600mm, and a maximum workpiece weight of 800kg. It can complete the precision turning of the outer circle, end face, and various hole patterns, aiming to achieve the effect of replacing grinding with turning.
The core logic of this technical route lies in: With the progress of numerical control systems, tool materials (such as PCBN, ceramic tools), and the rigidity design of the machine tool, precision turning has been able to approach the surface quality and dimensional accuracy of grinding under certain working conditions. Compared with grinding, turning processing has obvious cost advantages in equipment investment, abrasive wheel consumption, and coolant treatment. In industry practice, some enterprises have achieved the effect of replacing grinding with turning through the combination of "turning machine + sand belt grinding device", to avoid the high cost of purchasing grinding machines and the large area they occupy.
II. Application Scenarios and Processing Objects
The core application of this equipment is concentrated on the precision processing of roller rings. The materials of roller rings include infinite cold-hardened ball-milled cast iron, high-speed steel, and tungsten carbide. The hardness and wear resistance of these materials vary significantly, and different levels of requirements are imposed on the rigidity of the machine tool, the life of the tool, and the control of cutting parameters. The processing content covers the outer circle, end face, and various hole patterns. The contour accuracy of the hole pattern directly determines the cross-sectional shape of the rolled product, which is the key point of the process.
From the perspective of production line positioning, this special machine is suitable for roller ring professional manufacturers and the rolling ring repair workshops of steel enterprises. For roller rings with medium batch size and precision requirements not reaching the mirror-level grinding standard, replacing grinding can significantly shorten the single-piece processing time and reduce tool costs; for tungsten carbide and other super-hard material roller rings, it is necessary to carefully evaluate the tool scheme and cutting parameters, and in some cases, retain grinding as the final processing step.
III. Selection Suggestions
First, clarify the matching relationship between material and precision grade. The machinability of infinite cold-hardened ball-milled cast iron and high-speed steel roller rings is relatively good, and precision turning can easily achieve the goal of replacing grinding; the hardness and brittleness of tungsten carbide roller rings are extremely high, and the cutting tool wears quickly and has a high risk of chipping during turning. If the product precision is close to the grinding level, it is recommended to prioritize the grinding scheme or position turning as a semi-finish processing step. When selecting, suppliers should provide processing cases and measured surface roughness data of similar materials.
Second, pay attention to the compatibility of machine rigidity and tool holder system. In precision turning of roller rings, especially for hole pattern processing, the cutting force fluctuates greatly, and the rigidity of the bed and tool holder directly determines the dimensional consistency. When selecting, it is necessary to examine the maximum torque of the main shaft and the cutting force parameters of the tool holder, and confirm whether the numerical control system supports the interpolation function of the profile contour. Refer to the design of similar roller ring special machines, the maximum torque of the main shaft and the cutting force of the tool holder are the key indicators for measuring the heavy-load cutting capacity.
Third, evaluate the actual boundaries of "replacing grinding with turning". The "car replacement for grinding" claimed by the supplier is usually specific to certain materials and precision ranges. Before purchasing, actual workpieces should be brought for trial cutting verification. Key inspections include: cylindricalness of the outer circle, Ra value of the surface roughness, and contour accuracy of the hole type. If the trial cutting results have an acceptable gap compared to the ground parts, and the subsequent processes do not require additional grinding, then the turning scheme is economically viable; otherwise, it should be classified as a rough processing or semi-finish processing equipment.
Fourth, the supporting solution cannot be ignored. Although automatic chip removal and guard covers for the guide rails are auxiliary configurations, in the processing of cast iron roller rings, the erosion of chips and dust on the accuracy of the guide rails directly affects the long-term stability of the equipment. The cleanliness management of the cooling and filtration systems is also related to the tool life and surface quality of the tungsten carbide during processing. When selecting, it is necessary to confirm whether the chip removal method and filtration accuracy match the expected production capacity.
